Programming Windows Hpc Server - Using SOA Model

Conventionally, HPC/Parallel problems can be roughly divided into the following two categories[1][2]:

- Data Parallel, these applications divides the input data into a number of completely independent parts. The same computation is undertaken on each part. And some kind of post processing after the computations is needed.

- Task Parallel, these are those jobs that its functionality can be divided into many small tasks, each of which can be executed on one CPU core. These tasks may need to communication or not all at.

There is another special kind of parallel problems(orthogonal to data/task parallel):
- Embarrassingly Parallel, for these applications, little or no effort is required to separate the problem into a number of small tasks that runs on one CPU core. No or very lightweight post processing is needed. (no/little cooperation among task and post processing)

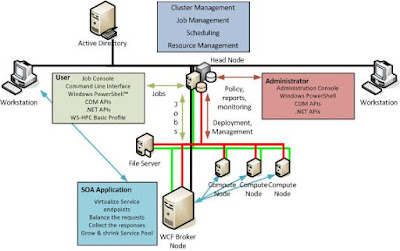

Windows Hpc SOA Programming Overview (from Microsoft)

On Windows Hpc Server 2008, programming model for Embarrassingly Parallel(especially web based) applications is referenced as SOA Model, in which, client send requests to service broker, and service broker forward these requests to service instances. Service instance never talks to each other, and communication among these components are all service oriented(more specifically, WCF based).

[SOA Programming Model Workflow, from Microsoft]

[3] is a detailed documentation on this topic, but in this article, I will demo a SOA based PI(3.1415926535...) value calculation application using Monte Carlo method[6] in a real Windows Hpc Cluster.

When I say "real windows hpc cluster", I mean:
1. The cluster has multiple nodes(6 nodes: 1 head, 1 broker, 4 compute).
2. This cluster has dedicated AD/Network, which is totally different from client/dev machines and network env.
3. You use some server called "Boundary Server" to access the Hpc Cluster. The boundary server has NICs to connect with both cluster private network and corp/enterprise network.
4. You dev/debug your application on boundary server, not on cluster head node.(let head node focus on job requests serving)
5. Your corp network domain account is different from Hpc Cluster private network domain account.
6. In the following sections, I assume the cluster environment is already correctly set up.
[These environment assumptions are more complex than those in [3], but they are more similar to real production env.]

The Monte Carlo PI value calculation contains two parts - the server part and client part.

The server part is a pure WCF service
- you define interface/contract and implement the interface. The core logic is listed below:
1. it's a .net/c# class library project, and it is a typical WCF service application.
2. use local machine IP and current date time to hash out a random seed number. This will make the whole process more random.
3. use .NET build-in random generator to generate a serial random number to do many independent Monte Carlo experiments. The idea is generating a ranged random point and see whether it is located within a circular area with some fixed diameter.
PiCalcServer Core Logic
1 public PiCalcResult Calc(UInt64 scale)
2 {
3 // use system time and machine ip to hash out the seed for random number generation
4 long ticks = DateTime.Now.Ticks;
5 IPHostEntry host = Dns.GetHostEntry(Dns.GetHostName());
6 ticks += host.AddressList[0].GetAddressBytes()[0];
7 ticks += host.AddressList[0].GetAddressBytes()[1] * 256;
8 ticks += host.AddressList[0].GetAddressBytes()[2] * 256 * 256;
9 ticks += host.AddressList[0].GetAddressBytes()[3] * 256 * 256 * 256;
10 Random rand = new Random((int)ticks);
11
12 // result init
13 PiCalcResult calcResult = new PiCalcResult();
14 calcResult.InCount = 0;
15 calcResult.OutCount = 0;
16
17 // do Monte Carlo exercise
18 Int32 x = 0, y = 0;
19 for (UInt64 i = 0; i < scale; ++i)
20 {
21 x = rand.Next(RAND_RANGE_MIN, RAND_RANGE_MAX);
22 y = rand.Next(RAND_RANGE_MIN, RAND_RANGE_MAX);
23
24 UInt64 d = (UInt64)Math.Round(Math.Sqrt((double)x * (double)x + (double)y * (double)y));
25 if (d <= RAND_RANGE_MAX)
26 {
27 calcResult.InCount++;
28 }
29 else
30 {
31 calcResult.OutCount++;
32 }
33 }
34
35 return calcResult;
36 }


After the WCF service implementation, you should deploy it to the Windows Hpc Cluster. This includes two steps:
1. Compose a service configuration file.(The PiCalcService.config file is contained in the source code package, see [3] for detailed fields explanation)
<microsoft.Hpc.Session.ServiceRegistration>
<service assembly="%CCP_HOME%App\PiCalcServer.dll"
contract="PiCalcServer.IPiCalcServer"
type="PiCalcServer.PiCalcServer"
architecture="x86">
<environmentVariables>
<add name="PATH" value="%MY_SERVICES_HOME%Bin"/>
</environmentVariables>
</service>
</microsoft.Hpc.Session.ServiceRegistration>

2. Copy Bin/Conf files to each compute node
clusrun xcopy /y \\FileServer\PrjDir\PiCalcServer.dll "c:\Program Files\Microsoft HPC Pack\App"
clusrun xcopy /y \\FileServer\PrjDir\PiCalcServer.Config "c:\Program Files\Microsoft HPC Pack\ServiceRegistration"

To see whether the deployment is successful:
1. go to StartMenu -> Hpc Pack -> Hpc Cluster Manager -> Diagnostics -> Tests -> SOA -> SOA Service Configuration Report and run this test.
2. Diagnostics -> Test Results. It will list the detailed results of test in step 1. If your deployment is successful, the report will tell you the service name/bin/interface/implementation and target arch.

The other part of the solution is the client application.
- It's both WCF client application and Hpc cluster application:
1. It's a normal .Net/C# console/winform application, which will call remote WCF service and Hpc scheduler service.
2. As normal WCF client application, you should use svcutil tool to generate the wcf client proxy class(async style is used here) and add it to your client application project.
svcutil PiCalcServer.dll
svcutil *.wsdl *.xsd /async /language:C# /out:PiCalcServerProxy.cs

3. When developing SOA application, you should create session with Hpc cluster, get the SOA broker service endpoint from the session and call WCF service from this endpoint.
4. Your whole client logic looks like: create session, divide computation task, send requests, collect the partial results from various sub-tasks and compute the final result.
PiCalcClient Core Logic
1 //
2 // Create a session object that specifies the head node to which to connect and the name of
3 // the WCF service to use.
4 //
5 SessionStartInfo ssInfo = new SessionStartInfo(schedulerHost, serviceName);
6 ssInfo.Username = clusterHeadUser;
7 ssInfo.Password = clusterHeadPassword;
8 ssInfo.ResourceUnitType = Microsoft.Hpc.Scheduler.Properties.JobUnitType.Core;
9 ssInfo.MinimumUnits = 2;
10 ssInfo.MaximumUnits = 1000;
11
12 Console.WriteLine("Creating a session ...");
13 using (Session session = Session.CreateSession(ssInfo))
14 {
15 Console.WriteLine("Session creation done!");
16 Console.WriteLine("Session's Endpoint Reference:{0}", session.EndpointReference.ToString());
17 int nodes = session.ServiceJob.AllocatedNodes.Count;
18
19 //
20 // Binds session to the client proxy using NetTcp binding (specify only NetTcp binding). The
21 // security mode must be Transport and you cannot enable reliable sessions.
22 //
23 System.ServiceModel.Channels.Binding myTcpBinding = new NetTcpBinding(SecurityMode.Transport, false);
24 myTcpBinding.ReceiveTimeout = maxTimeOut;
25 myTcpBinding.SendTimeout = maxTimeOut;
26 PiCalcServerClient calcServerClient = new PiCalcServerClient(myTcpBinding, session.EndpointReference);
27 calcServerClient.ClientCredentials.Windows.ClientCredential.UserName = wcfClientUser;
28 calcServerClient.ClientCredentials.Windows.ClientCredential.Password = wcfClientPassword;
29
30 //
31 // There is no way to get the accurate allocated core count, just assume each node has avgCoresPerNode cores.
32 //
33 timeBegin = DateTime.Now;
34 int taskCount = session.ServiceJob.AllocatedNodes.Count * avgCoresPerNode;
35 asyncCalcCount = taskCount;
36 for (int i = 0; i < taskCount; i++)
37 {
38 UInt64 scale = totalScale / (UInt64)taskCount;
39 calcServerClient.BeginCalc(scale, AsyncCalcCallback, new CalcReqContext(calcServerClient, i));
40 }
41 asyncCalcDone.WaitOne();
42 Console.WriteLine("All sub tasks done!");
43 timeEnd = DateTime.Now;
44
45 calcServerClient.Close();
46 Console.WriteLine("========================================");
47 Console.WriteLine("totalIn:{0}, totalOut:{1}", totalIn, totalOut);
48 Console.WriteLine("the mc pi value:{0}", (totalIn + 0.0) / (totalScale + 0.0) * 4);
49 Console.WriteLine("the total time used:{0}", (timeEnd.Value.ToFileTime() - timeBegin.Value.ToFileTime()) / (10 * 1000 * 1000));
50 Console.WriteLine("Please enter any key to continue...");
51 Console.ReadLine();
52 }

NOTE:
1. this is just the core logic, for full code, see the source code package.
2. the serviceName is defined as the service configuration file name without the .config extension. schedulerHost is defined as the machine name of the head node of the Hpc cluster.
3. clusterHeadUser/clusterHeadPassword is used to login to head node to submit jobs, while wcfClientUser/wcfClientPassword is used to login to compute node to access WCF services, both of them should be explicitly set in a real cluster environment. The two account are usually the same in most cluster environments, but not the same as your domain account that is used to login corp network.
4. if "Can't find file - Microsoft.Hpc.Sheduler.Store.dll" exception raised when running the client, install Windows HPC Pack Client Utilities. Only Windows HPC Pack SDK is not enough for developing/running Hpc applications.
5. it takes some time(about 1 minute in my env) to establish session with Hpc cluster.
6. you can see the job status, node head map etc in Hpc Cluster Manager while the application is running. The cluster manager is also helpful for investigation when error encountered.

Typical Client Application Console Output
Creating a session ...
Session creation done!
Session's Endpoint Reference:net.tcp://dit840-013:9087/broker/206
Sub Task[3] Done = In:263541326, Out:72002994
Sub Task[2] Done = In:263543455, Out:72000865
......
......
Sub Task[10] Done = In:263544094, Out:72000226
Sub Task[15] Done = In:263534741, Out:72009579
All sub tasks done!
============================================================
totalIn:4216696722, totalOut:1152012398
the mc pi value:3.14168387800455
the total time used:1244
Please enter any key to continue...

You can increase the exercise count to get more precise PI value, but it will consume more time.

full source code download
http://code4cs.googlecode.com/files/McPiCalc.zip

Some Personal Observations:
1. Windows Hpc Cluster provides convenient management tools and utilities, which makes deploying/managing middle-level(several hundreds of nodes) of computing cluster very easy.
2. Windows SOA programming model greatly simplified the development process of some specific kind of Hpc applications.
3. Windows Hpc build-in security feature add some complexity of the develop/deploy process and potential performance downgrade occurs if large amount of data movement happens among nodes. But these overhead results very little gains - dose security problem really matter in a private computing cluster?
4. Hpc SOA programming model is very similar to so called "web server farm" architecture. But as a general programming platform, the head/broker node fail-over problems are not solved in a very elegant and scalable way.
5. Windows Hpc scheduler is too general purpose, too centralized, which making the session creation very very time-consuming. This means that it takes SOA application much time to do init work.
6. Although it is called "SOA" and it uses popular "WCF" technology, the Hpc SOA architecture is completely not suitable for web applications(especially for scaling purpose). Microsoft describes the target scenario as "interactive application", which mainly includes Monte Carlo Problems, Ray Tracing, Excel Calculation Add-in and BLAST Searches.
